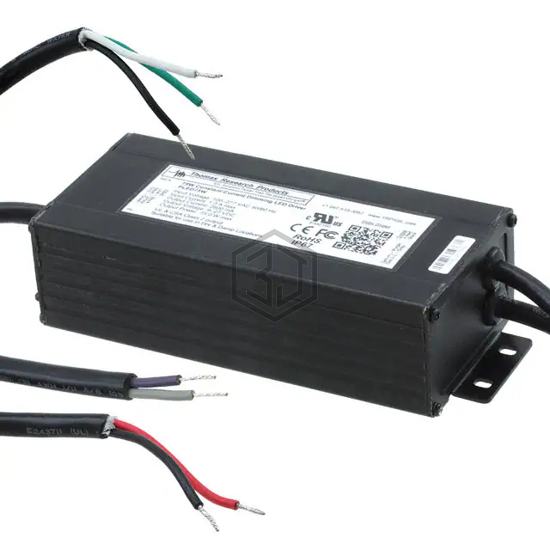

LED DRIVER CV AC/DC 24V 3.13A
PLED75W-024 is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CV AC/DC 24V 3.13A. Key specifications: operating temperature -30°C ~ 65°C, voltage - output 24V, current - output (max) 3.13A, size / dimension 5.00" L x 2.32" W x 1.47" H (140.2mm x 58.9mm x 37.3mm).
In Stock: 4,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 3.13A |
| Power (Watts) | 75 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 6 |
| Operating Temperature | -30°C ~ 65°C |
| Efficiency | 88% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.00" L x 2.32" W x 1.47" H (140.2mm x 58.9mm x 37.3mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for PLED75W-024 and get a quote within 24 hours.
