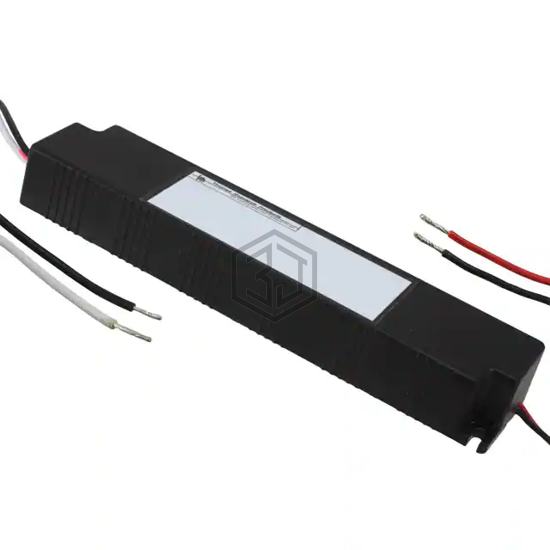

LED DRIVER CC AC/DC 7-20V 2.5A
LED50W-020-C2500-D is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 7-20V 2.5A. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 7 ~ 20V, current - output (max) 2.5A, size / dimension 7.64" L x 1.69" W x 0.98" H (194.0mm x 43.0mm x 25.0mm).
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 7 ~ 20V |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 50 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 87% |
| Termination Style | Wire Leads |
| Size / Dimension | 7.64" L x 1.69" W x 0.98" H (194.0mm x 43.0mm x 25.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for LED50W-020-C2500-D and get a quote within 24 hours.
