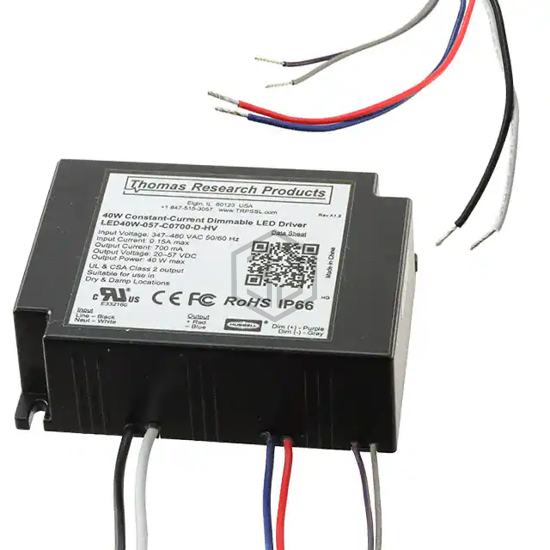

LED DRIVER CC AC/DC 19-57V 700MA
LED40W-057-C0700-D-HV is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 19-57V 700MA. Key specifications: voltage - output 20 ~ 57V, current - output (max) 700mA, size / dimension 3.78" L x 2.80" W x 1.26" H (96.0mm x 71.0mm x 32.0mm), termination style Wire Leads.
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 312VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 20 ~ 57V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 40 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 4 |
| Operating Temperature | - |
| Efficiency | 85% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.78" L x 2.80" W x 1.26" H (96.0mm x 71.0mm x 32.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
