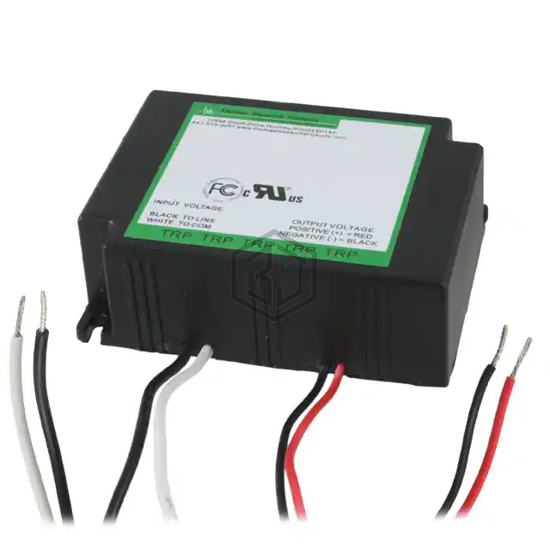

LED DRIVER CC AC/DC 7-22V 1.82A
LED40W-022-C1820 is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 7-22V 1.82A. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 7 ~ 22V, current - output (max) 1.82A, size / dimension 3.74" L x 2.76" W x 1.26" H (95.0mm x 70.0mm x 32.0mm).
In Stock: 252
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 7 ~ 22V |
| Current - Output (Max) | 1.82A |
| Power (Watts) | 40 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 4 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 86% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.74" L x 2.76" W x 1.26" H (95.0mm x 70.0mm x 32.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for LED40W-022-C1820 and get a quote within 24 hours.
