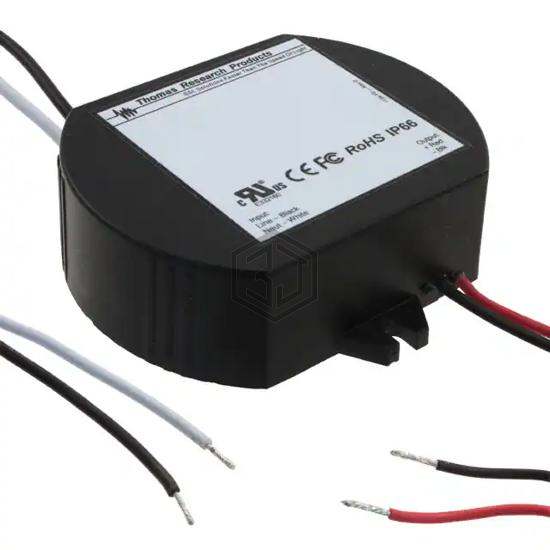

LED DRIVER CC AC/DC 24-48V 520MA
LED25W-48-C0520-TE is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 24-48V 520MA. Key specifications: voltage - output 24 ~ 48V, current - output (max) 520mA, size / dimension 3.15" L x 3.07" W x 0.99" H (80.0mm x 78.0mm x 25.2mm), termination style Wire Leads.
In Stock: 139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 277VAC |
| Voltage - Output | 24 ~ 48V |
| Current - Output (Max) | 520mA |
| Power (Watts) | 25 W |
| Voltage - Isolation | - |
| Dimming | ELV |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 4 |
| Operating Temperature | - |
| Efficiency | 85% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.15" L x 3.07" W x 0.99" H (80.0mm x 78.0mm x 25.2mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for LED25W-48-C0520-TE and get a quote within 24 hours.
