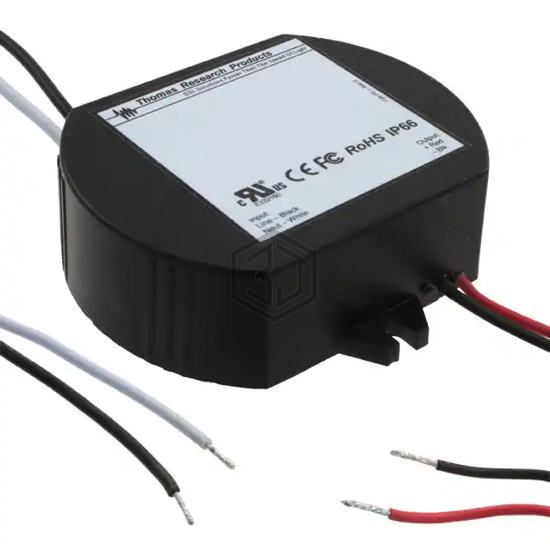

LED DRIVER CC AC/DC 6-18V 1.4A
LED25W-18-C1400 is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 6-18V 1.4A. Key specifications: voltage - output 6 ~ 18V, current - output (max) 1.4A, size / dimension 3.15" L x 3.07" W x 0.99" H (80.0mm x 78.0mm x 25.2mm), termination style Wire Leads.
In Stock: 7,455
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 6 ~ 18V |
| Current - Output (Max) | 1.4A |
| Power (Watts) | 25 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | - |
| Efficiency | 82% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.15" L x 3.07" W x 0.99" H (80.0mm x 78.0mm x 25.2mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for LED25W-18-C1400 and get a quote within 24 hours.
