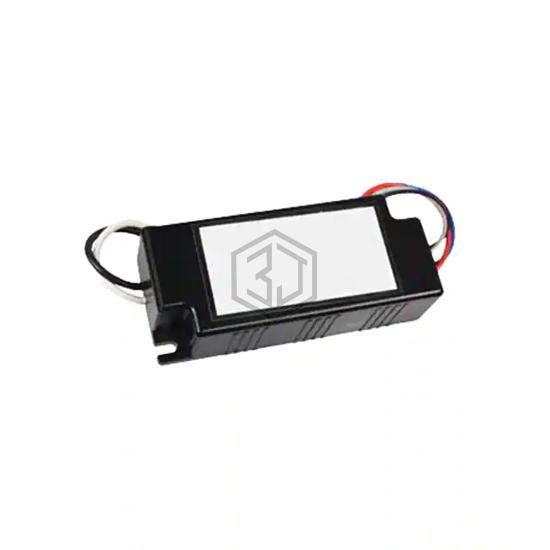

LED DRIVER CC AC/DC 19-57V 350MA
LED20W-57-C0350-D is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 19-57V 350MA. Key specifications: voltage - output 19 ~ 57V, current - output (max) 350mA, size / dimension 3.74" L x 1.61" W x 0.98" H (95.0mm x 41.0mm x 25.0mm), termination style Wire Leads.
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 19 ~ 57V |
| Current - Output (Max) | 350mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 4 |
| Operating Temperature | - |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.74" L x 1.61" W x 0.98" H (95.0mm x 41.0mm x 25.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for LED20W-57-C0350-D and get a quote within 24 hours.
