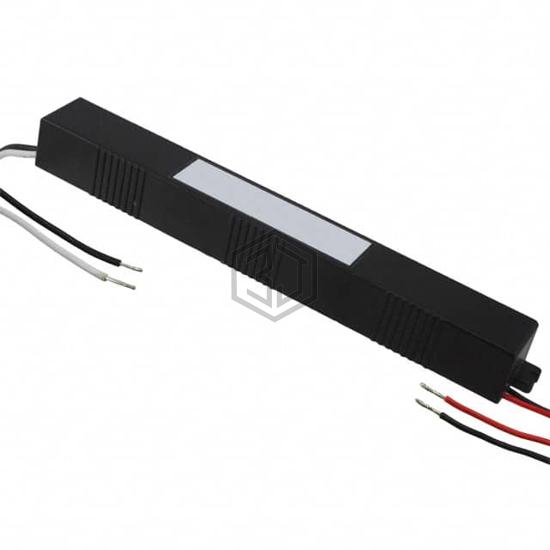

LED DRIVER CV AC/DC 24V 700MA
LED17W-24 is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CV AC/DC 24V 700MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 24V, current - output (max) 700mA, size / dimension 8.43" L x 0.98" W x 0.87" H (214.0mm x 25.0mm x 22.0mm).
In Stock: 8,162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 17 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 82% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.43" L x 0.98" W x 0.87" H (214.0mm x 25.0mm x 22.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for LED17W-24 and get a quote within 24 hours.
