LED DRIVER CC AC/DC 18-36V 350MA

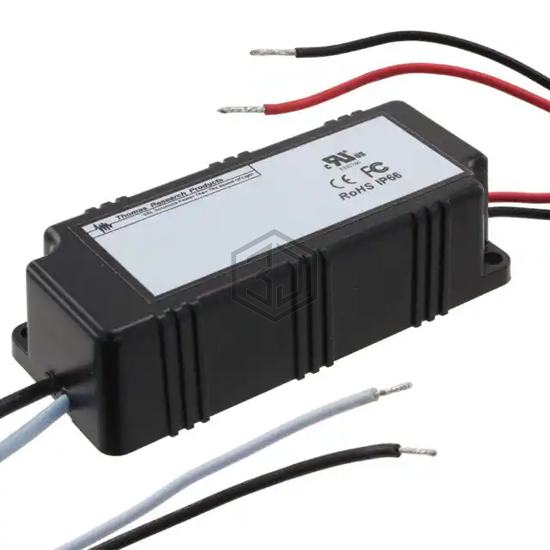

LED12W-36-C0350 is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 18-36V 350MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 18 ~ 36V, current - output (max) 350mA, size / dimension 3.35" L x 1.42" W x 0.91" H (85.0mm x 36.0mm x 23.0mm).
In Stock: 395
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 18 ~ 36V |
| Current - Output (Max) | 350mA |
| Power (Watts) | 12 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 81% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.35" L x 1.42" W x 0.91" H (85.0mm x 36.0mm x 23.0mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | - |
Submit your RFQ for LED12W-36-C0350 and get a quote within 24 hours.
