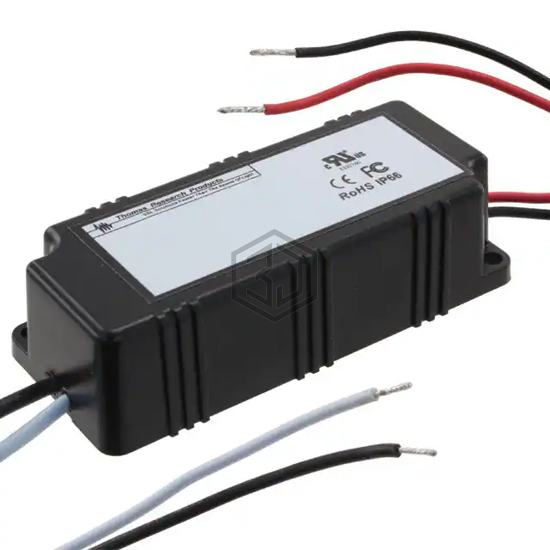

LED DRIVER CC AC/DC 18-36V 250MA
LED12W-36-C0250-D is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 18-36V 250MA. Key specifications: voltage - output 12 ~ 36V, current - output (max) 250mA, size / dimension 4.04" L x 1.48" W x 0.95" H (102.6mm x 37.6mm x 24.1mm), termination style Wire Leads.
In Stock: 2,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 108VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 12 ~ 36V |
| Current - Output (Max) | 250mA |
| Power (Watts) | 9 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | - |
| Efficiency | 77% |
| Termination Style | Wire Leads |
| Size / Dimension | 4.04" L x 1.48" W x 0.95" H (102.6mm x 37.6mm x 24.1mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for LED12W-36-C0250-D and get a quote within 24 hours.
