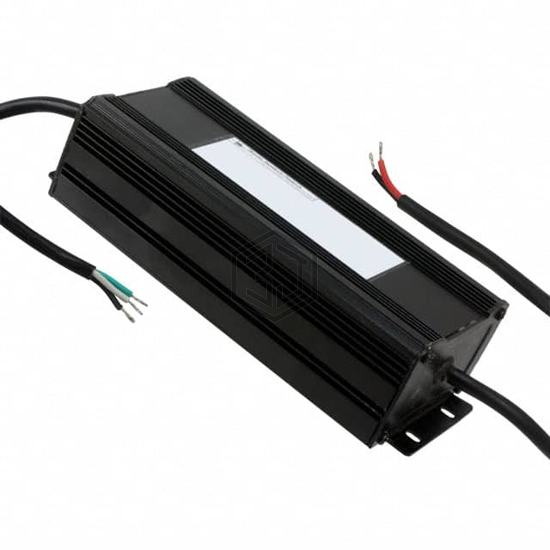

LED DRIVR CC AC/DC 74-222V 450MA
LED100W-222-C0450 is a LED Drivers manufactured by Thomas Research Products. LED DRIVR CC AC/DC 74-222V 450MA. Key specifications: operating temperature -30°C ~ 65°C, voltage - output 74 ~ 222V, current - output (max) 450mA, size / dimension 6.42" L x 2.81" W x 1.83" H (163.0mm x 71.3mm x 46.5mm).
In Stock: 543
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 74 ~ 222V |
| Current - Output (Max) | 450mA |
| Power (Watts) | 100 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 65°C |
| Efficiency | 92% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.42" L x 2.81" W x 1.83" H (163.0mm x 71.3mm x 46.5mm) |
| Approval Agency | CE, CSA, cULus, EN |
| Standard Number | - |
