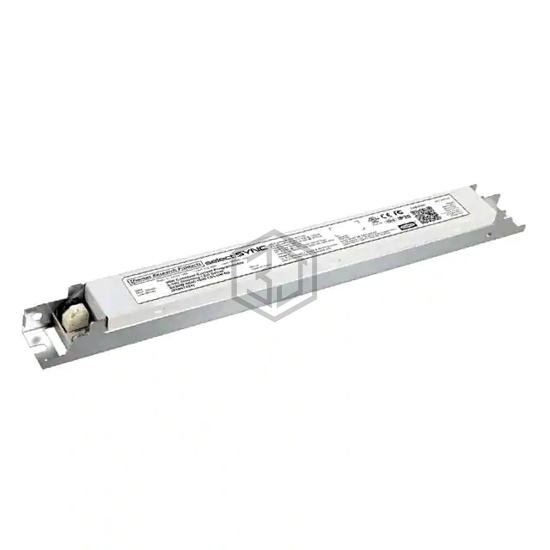

LED DVR CC AC/DC 10-54V 1.4A
050W-052C1400-L03-UN-D2 is a LED Drivers manufactured by Thomas Research Products. LED DVR CC AC/DC 10-54V 1.4A. Key specifications: operating temperature -30°C ~ 80°C, voltage - output 10 ~ 54V, current - output (max) 0.4 ~ 1.4 A (1.4A Default), size / dimension 12.75" L x 1.17" W x 1.03" H (323.9mm x 29.7mm x 26.2mm).
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 120VAC |
| Voltage - Input (Max) | 277VAC |
| Voltage - Output | 10 ~ 54V |
| Current - Output (Max) | 0.4 ~ 1.4 A (1.4A Default) |
| Power (Watts) | 50 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP20 |
| Operating Temperature | -30°C ~ 80°C |
| Efficiency | 87% |
| Termination Style | Terminal Block |
| Size / Dimension | 12.75" L x 1.17" W x 1.03" H (323.9mm x 29.7mm x 26.2mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
