AUTOMOTIVE, FUNCTIONAL SAFETY CO

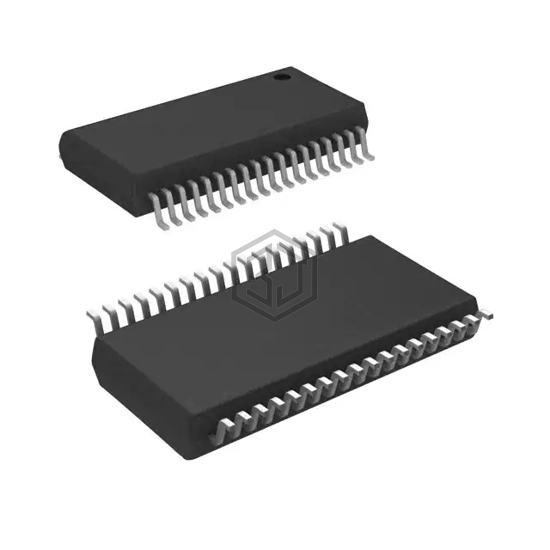

UCC5870QDWJRQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. AUTOMOTIVE, FUNCTIONAL SAFETY CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 5.5V, 15V ~ 30V, package / case 36-BSSOP (0.295", 7.50mm Width).
In Stock: 7,516
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Full-Bridge |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, SiC MOSFET |
| Voltage - Supply | 3V ~ 5.5V, 15V ~ 30V |
| Logic Voltage - VIL, VIH | 1.5V, 3V |
| Current - Peak Output (Source, Sink) | 15A, 15A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 150ns, 150ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 36-SSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC33GD3100A3EKR2 | NXP USA Inc. | IGBT GATE DRIVE IC | 98% | View |
| MC33GD3100B3EKR2 | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 32SOIC | 98% | View |
| MGD3100BM38EKR2 | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 32BSSOP | 98% | View |
| MGD3100AM38EK | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 32BSSOP | 98% | View |
| MGD3100AM38EKR2 | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 32BSSOP | 98% | View |
| MGD3160AM518EKR2 | NXP USA Inc. | IC GATE DRVR HIGH-SIDE 32SOIC | 92% | View |
Submit your RFQ for UCC5870QDWJRQ1 and get a quote within 24 hours.
