IC ISOLATION

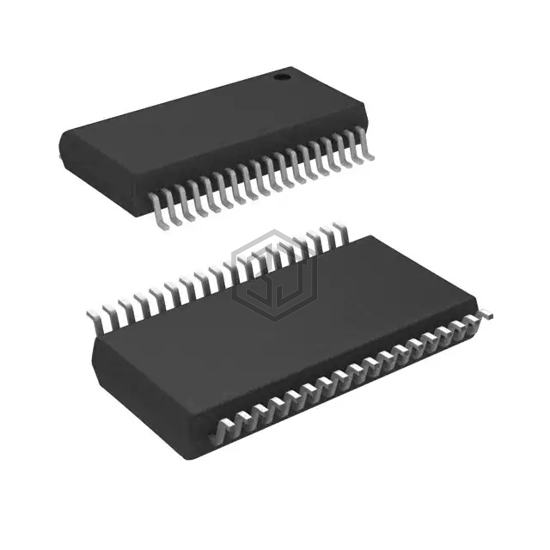

UCC5870QDWJQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. IC ISOLATION. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 36-BSSOP (0.295", 7.50mm Width).
In Stock: 7,779
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 150ns, 150ns (Max) |
| Current - Output High, Low | 30A, 30A |
| Current - Peak Output | 30A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 36-SSOP |
| Approval Agency | - |
Submit your RFQ for UCC5870QDWJQ1 and get a quote within 24 hours.
