2A /2A 5KVRMS ISOGATE DR-SPLIT O

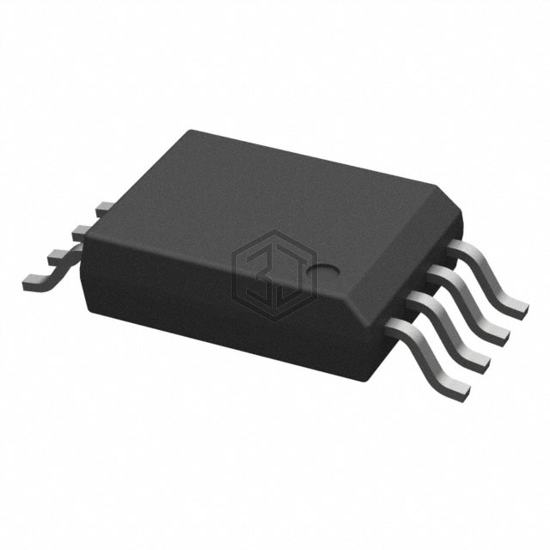

UCC5320SCDWVR is a Isolators - Gate Drivers manufactured by Texas Instruments. 2A /2A 5KVRMS ISOGATE DR-SPLIT O. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency CQC, UR, VDE.
In Stock: 7,138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Pulse Width Distortion (Max) | 20ns |
| Rise / Fall Time (Typ) | 12ns, 10ns |
| Current - Output High, Low | 2.4A, 2.2A |
| Current - Peak Output | 4.3A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 13.2V ~ 33V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| Approval Agency | CQC, UR, VDE |
Submit your RFQ for UCC5320SCDWVR and get a quote within 24 hours.
