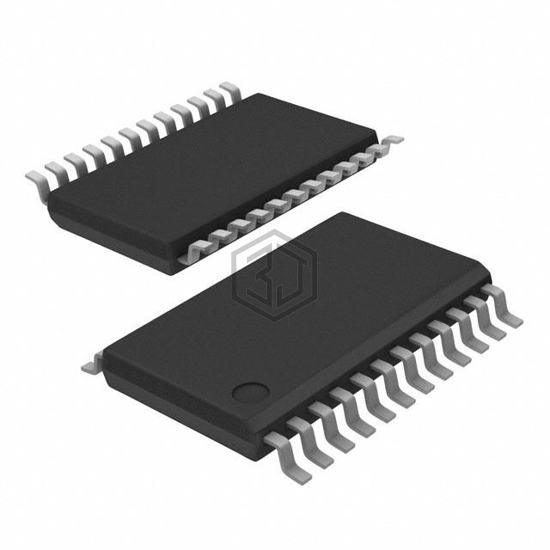

IC REG CTRLR FULL-BRIDGE 24TSSOP
UCC28950PW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR FULL-BRIDGE 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 17V, package / case 24-TSSOP (0.173", 4.40mm Width).
In Stock: 8,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Full-Bridge |
| Number of Outputs | 6 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 17V |
| Frequency - Switching | 50kHz ~ 1MHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC28950QPWRQ1 | Texas Instruments | IC REG CTRLR FULL-BRIDGE 24TSSOP | 100% | View |
| UCC28950PWR | Texas Instruments | IC REG CTRLR FULL-BRIDGE 24TSSOP | 100% | View |
| LTC3777ILXE#PBF | Analog Devices Inc. | 150V VIN AND VOUT SYNCHRONOUS 4- | 75% | View |
| LTC3777ELXE#PBF | Analog Devices Inc. | 150V VIN AND VOUT SYNCHRONOUS 4- | 75% | View |
| LTC7871HLWE#PBF | Analog Devices Inc. | 6-PHASE BIDIRECTIONAL BUCK/BOOST | 71% | View |
| LTC7871JLWE#WPBF | Analog Devices Inc. | 6-PHASE BIDIRECTIONAL BUCK/BOOST | 71% | View |
Submit your RFQ for UCC28950PW and get a quote within 24 hours.
