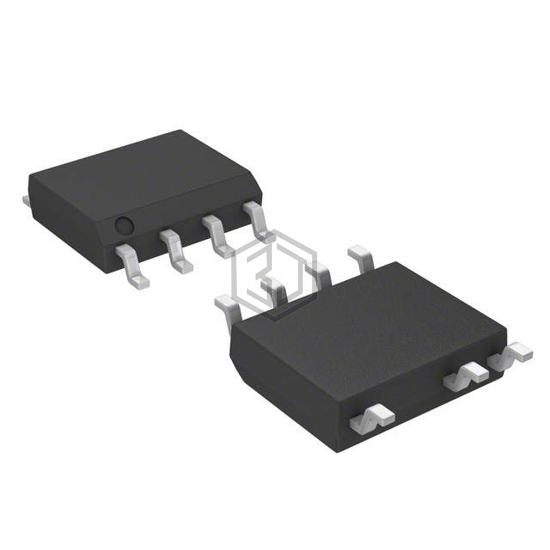

IC OFFLINE SWITCH FLYBACK 7SOIC
UCC28633D is a PMIC - AC DC Converters, Offline Switchers manufactured by Texas Instruments. IC OFFLINE SWITCH FLYBACK 7SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 9,822
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 14.75 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Duty Cycle | 70% |
| Frequency - Switching | 200Hz ~ 120kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC28630D | Texas Instruments | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| UCC28631DR | Texas Instruments | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| UCC28632D | Texas Instruments | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| UCC28633DR | Texas Instruments | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| UCC28631D | Texas Instruments | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| UCC28632DR | Texas Instruments | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
Submit your RFQ for UCC28633D and get a quote within 24 hours.
