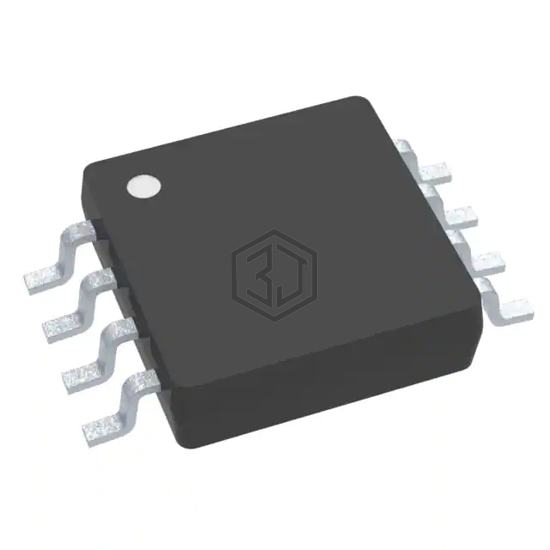

IC OFFLINE SW MULT TOP 8VSSOP
UCC2809PTR-1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Texas Instruments. IC OFFLINE SW MULT TOP 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 8V ~ 19V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 4,286
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Boost, Flyback, Forward |
| Voltage - Start Up | 10 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 19V |
| Duty Cycle | 70% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC2809DTR-2 | Texas Instruments | IC OFFLINE SWITCH MULT TOP 8SOIC | 100% | View |
| SC4905BIMSTRT | Semtech Corporation | IC OFFLINE SWITCH FWD 10MSOP | 98% | View |
| UCC25706D | Unitrode | IC OFFLINE SWITCH MULT TOP 8SOIC | 97% | View |
| UCC3808D-1 | Texas Instruments | IC OFFLINE SW PUSH-PULL 8SOIC | 96% | View |
| UCC2807D-2 | Texas Instruments | IC OFFLINE SWITCH MULT TOP 8SOIC | 96% | View |
| UCC3809D-2 | Unitrode | IC OFFLINE SWITCH MULT TOP 8SOIC | 94% | View |
Submit your RFQ for UCC2809PTR-1 and get a quote within 24 hours.
