IC ISOLATION

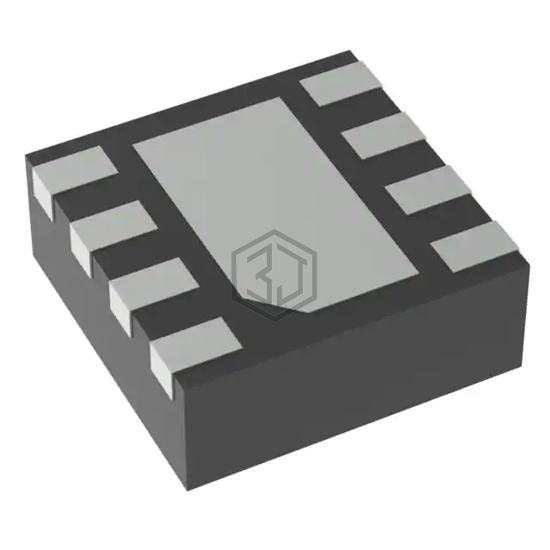

UCC27614DSGR is a PMIC - Gate Drivers manufactured by Texas Instruments. IC ISOLATION. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 16V, package / case 8-WFDFN Exposed Pad.
In Stock: 8,914
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 10A, 10A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 4.5ns, 4ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27614DR | Texas Instruments | 10-A/10-A SINGLE-CHANNEL GATE DR | 100% | View |
| NCP81074BMNTBG | onsemi | IC GATE DRVR LOW-SIDE 8DFN | 98% | View |
| NCP81074BDR2G | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| MIC4422YM | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 75% | View |
| MIC4422AYM | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 75% | View |
| TC4421AVMF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 75% | View |
Submit your RFQ for UCC27614DSGR and get a quote within 24 hours.
