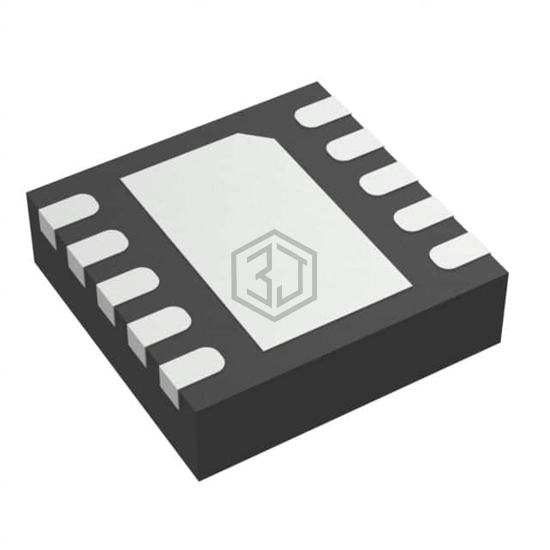

120V LOW COST HS/LS DRIVER
UCC27282QDRCTQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. 120V LOW COST HS/LS DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 5.5V ~ 16V, package / case 10-VFDFN Exposed Pad.
In Stock: 6,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 16V |
| Logic Voltage - VIL, VIH | 1.3V, 1.9V |
| Current - Peak Output (Source, Sink) | 2.5A, 3.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Rise / Fall Time (Typ) | 12ns, 10ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27282D | Texas Instruments | 120V LOW COST HS/LS DRIVER- D PK | 100% | View |
| ISL6615AIBZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8SOIC | 81% | View |
| ISL6615IRZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 10DFN | 81% | View |
| 2ED2181S06FXUMA1 | Infineon Technologies | IC HALF BRIDGE GATE DRIVER 650V | 66% | View |
| 2ED21834S06JXUMA1 | Infineon Technologies | IC HALF BRIDGE GATE DRIVER 650V | 66% | View |
| FAN73932MX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOP | 65% | View |
Submit your RFQ for UCC27282QDRCTQ1 and get a quote within 24 hours.
