IC GATE DRVR HALF-BRIDGE 10VSON

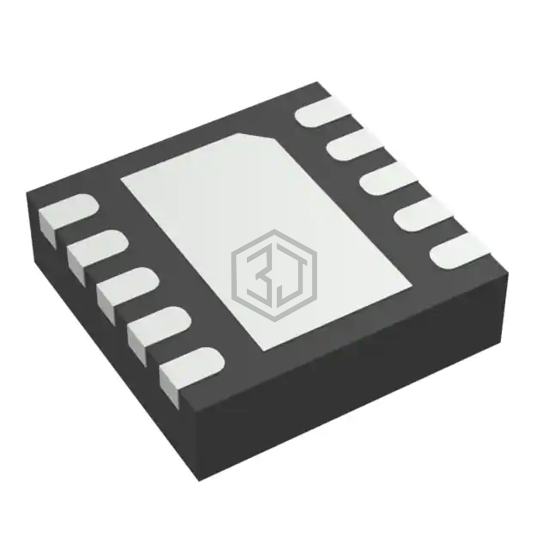

UCC27282DRCR is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10VSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 5.5V ~ 16V, package / case 10-VFDFN Exposed Pad.
In Stock: 2,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 16V |
| Logic Voltage - VIL, VIH | 0.9V, 2.4V |
| Current - Peak Output (Source, Sink) | 2.5A, 3.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Rise / Fall Time (Typ) | 12ns, 10ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27282DR | Texas Instruments | 3-A, 120-V HALF BRIDGE GATE DRIV | 96% | View |
| MP18021HN-LF | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8SOIC | 92% | View |
| MP18021HN-A-LF | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8SOIC | 92% | View |
| LTC4444IMS8E#TRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 85% | View |
| LTC4444IMS8E#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 85% | View |
| LTC4444HMS8E#WTRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 85% | View |
Submit your RFQ for UCC27282DRCR and get a quote within 24 hours.
