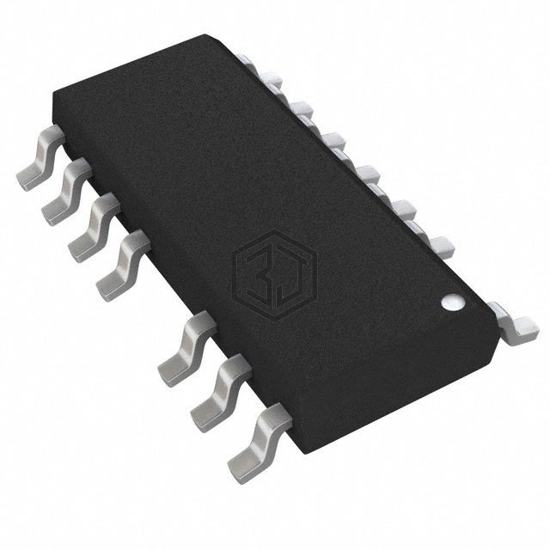

UCC25630-1DDBR
UCC25630-1DDBR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. UCC25630-1DDBR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 13V ~ 26V, package / case 16-SOIC (0.154", 3.90mm Width), 14 Leads.
In Stock: 2,884
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | - |
| Output Configuration | Positive, Isolation Capable |
| Topology | Half-Bridge |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 13V ~ 26V |
| Frequency - Switching | 35kHz ~ 1MHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Hybrid Hysteretic Control (HHC) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Supplier Device Package | 14-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC25630-1DDBT | Texas Instruments | HALF BRIDGE CONT WITH HV DRIVER | 100% | View |
| UCC25630-2DDBT | Texas Instruments | HALF BRIDGE CONT WITH HV DRIVER | 100% | View |
| UCC25630-4DDBT | Texas Instruments | HALF BRIDGE CONT WITH HV DRIVER | 100% | View |
| UCC25630-4DDBR | Texas Instruments | UCC25630-4DDBR | 100% | View |
| UCC25630-2DDBR | Texas Instruments | UCC25630-2DDBR | 100% | View |
| UCC25630-3DDBT | Texas Instruments | HALF BRIDGE CONT WITH HV DRIVER | 98% | View |
Submit your RFQ for UCC25630-1DDBR and get a quote within 24 hours.
