3A- SGNL CHAN ISO GD WITH OPTO 5

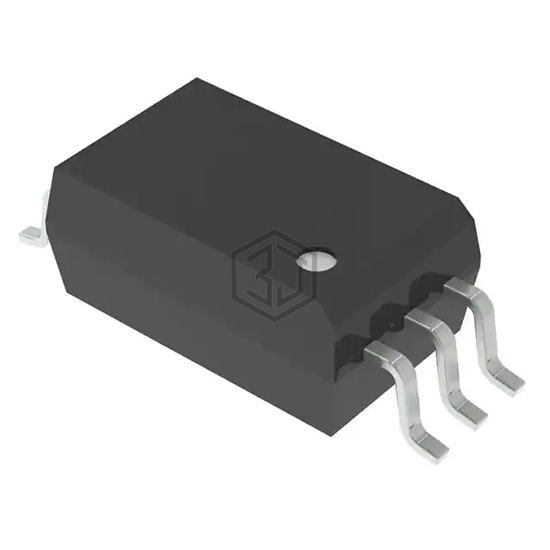

UCC23513BDWY is a Isolators - Gate Drivers manufactured by Texas Instruments. 3A- SGNL CHAN ISO GD WITH OPTO 5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 2.1V, package / case 6-SOIC (0.295", 7.50mm Width).
In Stock: 8,349
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 105ns, 105ns |
| Pulse Width Distortion (Max) | 35ns |
| Rise / Fall Time (Typ) | 28ns, 25ns (Max) |
| Current - Output High, Low | 4.5A, 5.3A |
| Current - Peak Output | 4.5A, 5.3A |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 10V ~ 33V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SOIC |
| Approval Agency | CQC, UL, VDE |
Submit your RFQ for UCC23513BDWY and get a quote within 24 hours.
