REINFORCED ISOLATION DUAL-CHANNE

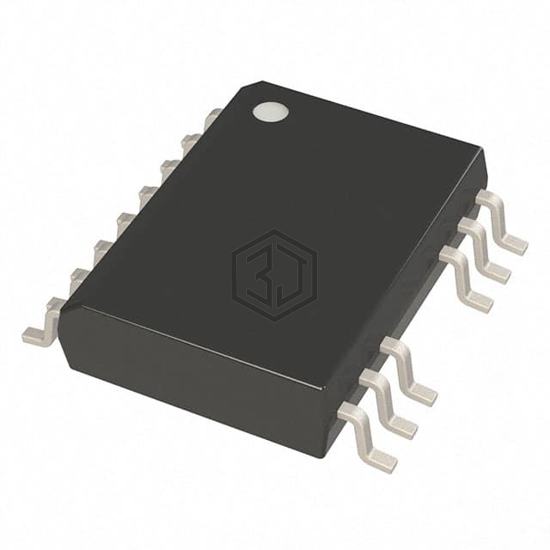

UCC21542ADWKR is a Isolators - Gate Drivers manufactured by Texas Instruments. REINFORCED ISOLATION DUAL-CHANNE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, UL, VDE.
In Stock: 4,136
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 1.85kVrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 40ns, 40ns |
| Pulse Width Distortion (Max) | 5.5ns |
| Rise / Fall Time (Typ) | 5ns, 6ns |
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 6V ~ 18V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Approval Agency | CQC, UL, VDE |
Submit your RFQ for UCC21542ADWKR and get a quote within 24 hours.
