IC GATE DRVR ISOLATED

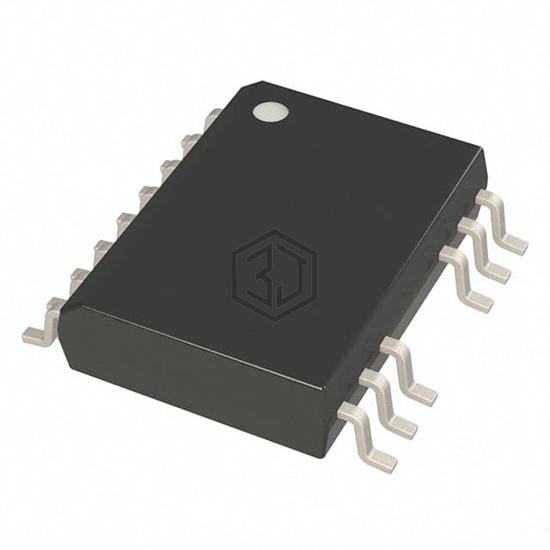

UCC21530QDWKQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR ISOLATED. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C (TJ), voltage - supply 3V ~ 18V, package / case 14-SOIC (0.295", 7.50mm Width).
In Stock: 1,454
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 3V ~ 18V |
| Logic Voltage - VIL, VIH | 1.2V, 1.6V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| Input Type | CMOS/TTL |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27211DRMT | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8VSON | 85% | View |
| UCC37325DR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 78% | View |
| UCC37323DR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 78% | View |
| NCP81075MTTXG | onsemi | IC GATE DRVR HI/LOW SIDE 10WDFN | 78% | View |
| UCC27210DDAR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOPWR | 77% | View |
| MAX17602ASA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8SOIC | 71% | View |
Submit your RFQ for UCC21530QDWKQ1 and get a quote within 24 hours.
