IC POWER MANAGEMENT

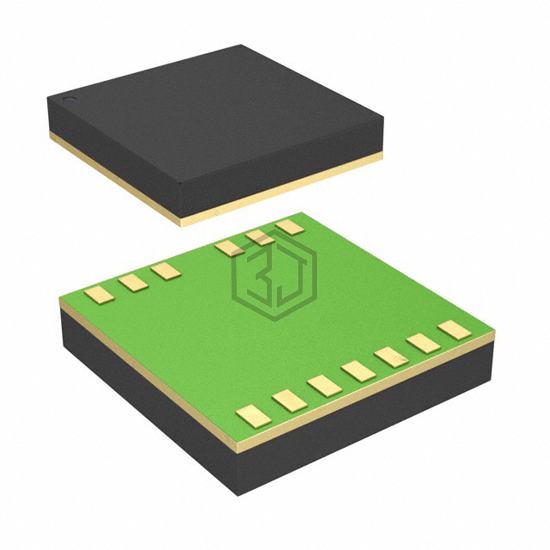

UCC20225AQNPLTQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 13-VFLGA, approval agency CQC, UL, VDE.
In Stock: 4,850
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A, 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 6.5V ~ 25V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 13-VFLGA |
| Supplier Device Package | 13-VLGA (5x5) |
| Approval Agency | CQC, UL, VDE |
Submit your RFQ for UCC20225AQNPLTQ1 and get a quote within 24 hours.
