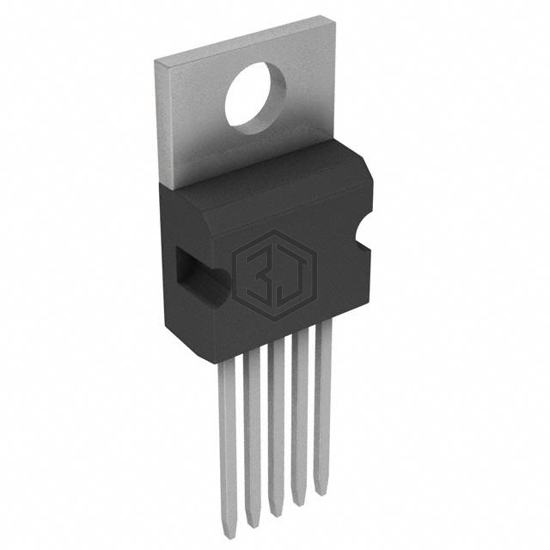

IC GATE DRVR LOW-SIDE TO220-5
UC3705T is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE TO220-5. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply 5V ~ 40V, package / case TO-220-5.
In Stock: 46,356
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5V ~ 40V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
UC3705T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2125PBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 8DIP | 91% | View |
| TC1412NEPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 84% | View |
| TC1412EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 84% | View |
| TC1412NCPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 84% | View |
| TC1412CPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 84% | View |
| IR2121PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 82% | View |
Submit your RFQ for UC3705T and get a quote within 24 hours.
