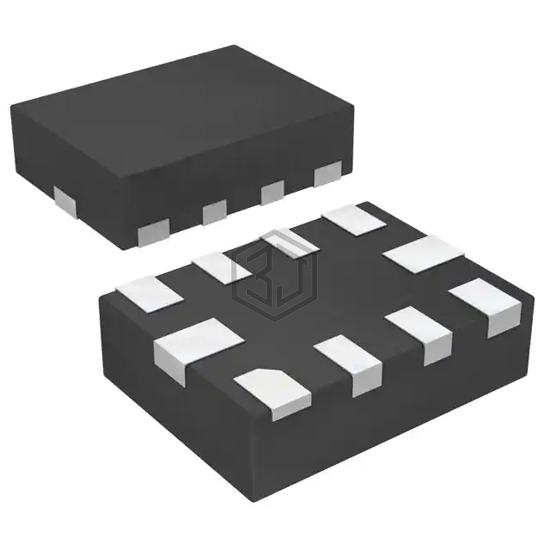

IC SWITCH DUAL SPDT 10UQFN
TS5A23157RSER is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 4,939
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.7ns, 3.8ns |
| -3db Bandwidth | 220MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -66dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (2.0x1.5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS5A23157DGSR | Texas Instruments | IC SWITCH DUAL SPDT 10MSOP | 100% | View |
| 1P1G3157QDBVRQ1 | Texas Instruments | IC SWITCH SPDT SOT23-6 | 84% | View |
| 74LVC1G3157DBVRG4 | Texas Instruments | IC SWITCH SPDT SOT23-6 | 84% | View |
| TS5A2066DCUR | Texas Instruments | IC SWITCH SPST DUAL 8VSSOP | 77% | View |
| TS5A2066DCTR | Texas Instruments | IC SWITCH DUAL SPST SM8 | 77% | View |
| TS5A2066YZPR | Texas Instruments | IC SWITCH DUAL SPST 8DSBGA | 77% | View |
