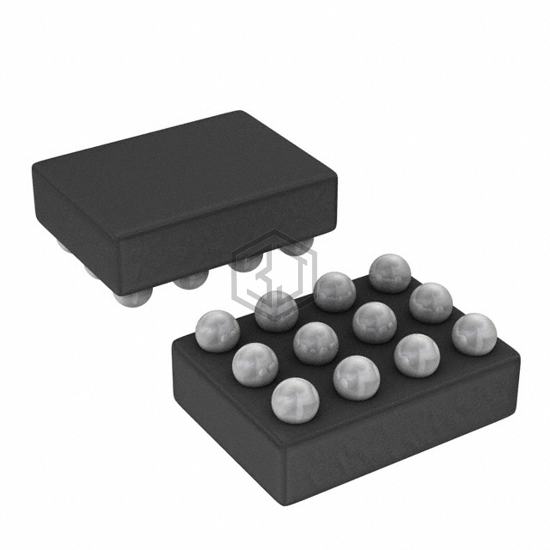

IC SWITCH DUAL SPDT 12DSBGA
TS5A22366YFCR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 12DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, DSBGA, number of circuits 2.
In Stock: 276,346
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 2.25V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 374ns, 325ns |
| -3db Bandwidth | 32MHz |
| Charge Injection | 168pC |
| Channel Capacitance (CS(off), CD(off)) | 48pF |
| Current - Leakage (IS(off)) (Max) | 50nA |
| Crosstalk | -70dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFBGA, DSBGA |
| Supplier Device Package | 12-DSBGA (1.57x1.17) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4679EUE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 52% | View |
| MAX4678EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 52% | View |
| MAX4678EUE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 52% | View |
| MAX4677EUE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 52% | View |
| MAX4679EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 52% | View |
| MAX4677EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 52% | View |
Submit your RFQ for TS5A22366YFCR and get a quote within 24 hours.
