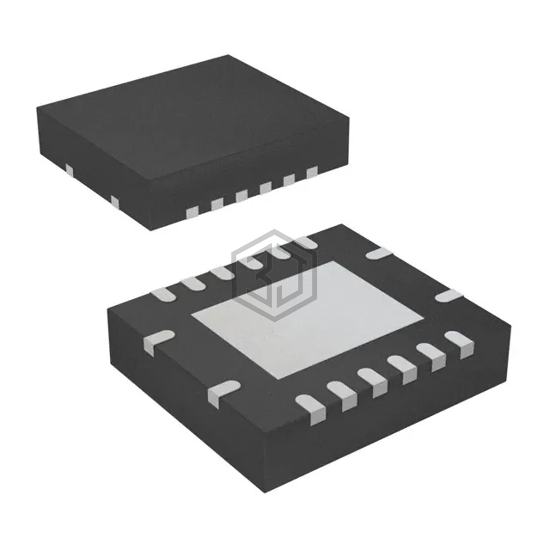

IC SWITCH QUAD SP4T 16VQFN
TS3A5017RGYRG4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH QUAD SP4T 16VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.
In Stock: 4,818
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 12Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 2.3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 9.5ns, 3.5ns |
| -3db Bandwidth | 165MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 4.5pF, 19pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -49dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (4x3.5) |
TS3A5017RGYRG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS3A5017DBQR | Texas Instruments | IC SWITCH SP4T DUAL 16SSOP | 100% | View |
| TS3A5017DGVR | Texas Instruments | IC SWITCH SP4T DUAL 16TVSOP | 100% | View |
| TS3A5017DR | Texas Instruments | IC SWITCH DUAL SP4T 16SOIC | 100% | View |
| TS3A5017PW | Texas Instruments | IC SWITCH QUAD SP4T 16TSSOP | 100% | View |
| TS3A5017RGYR | Texas Instruments | IC SWITCH QUAD SP4T 16VQFN | 100% | View |
| TS3A5017RSVR | Texas Instruments | IC SWITCH DUAL SP4T 16UQFN | 100% | View |
Submit your RFQ for TS3A5017RGYRG4 and get a quote within 24 hours.
