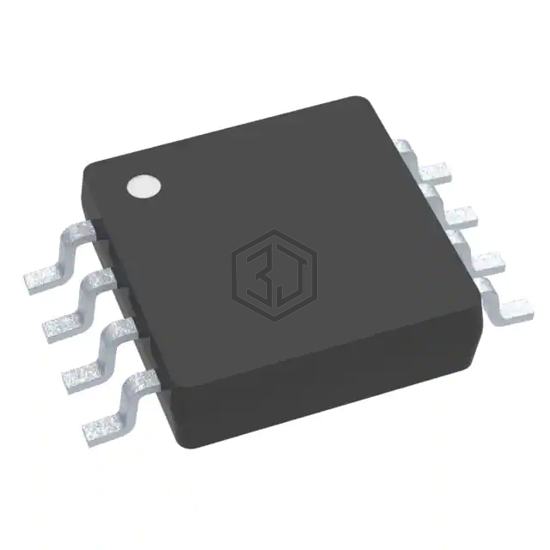

IC SWITCH SGL SPDT ANLG 8VSSOP
TS12A12511DGKR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SGL SPDT ANLG 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 1.
In Stock: 8,898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 5Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 95ns, 50ns |
| -3db Bandwidth | 93MHz |
| Charge Injection | 26pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS12A12511DCNR | Texas Instruments | IC SWITCH SGL SPDT ANLG SOT23-8 | 100% | View |
| TS12A12511DRJR | Texas Instruments | IC SWITCH SPDT SGL 8SON | 100% | View |
| ADG728BRUZ-REEL7 | Analog Devices Inc. | IC MUX/DEMUX 8X1 16TSSOP | 75% | View |
| ADG728WBRUZ-REEL7 | Analog Devices Inc. | IC MUX/DEMUX 8X1 16TSSOP | 75% | View |
| TMUX6234RRQR | Texas Instruments | 2.2-NV/HZ, LOW-POWER, 36-V OPERA | 74% | View |
| MAX4541EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 64% | View |
