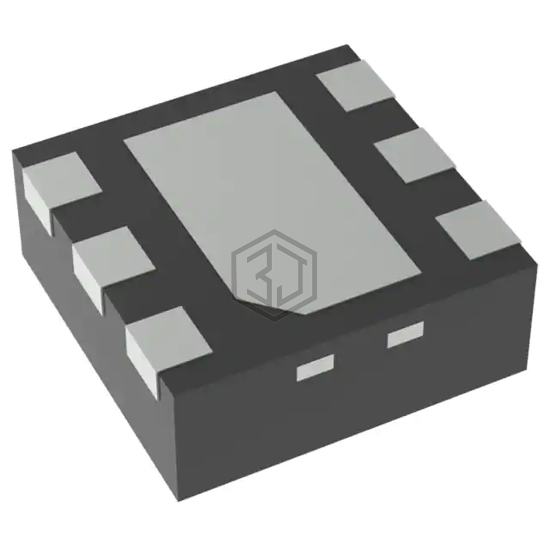

IC REG LINEAR POS ADJ 1A 6WSON
TPS7A3701DRVT is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 1A 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-WDFN Exposed Pad, current - supply (max) 1.3 mA.
In Stock: 4,470
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 5.37V |
| Voltage Dropout (Max) | 0.2V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 400 µA |
| Current - Supply (Max) | 1.3 mA |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS7A3701DRVR | Texas Instruments | IC REG LINEAR POS ADJ 1A 6WSON | 100% | View |
| TPS73701DCQR | Texas Instruments | IC REG LINEAR POS ADJ 1A SOT223 | 94% | View |
| TPS73701DRBT | Texas Instruments | IC REG LINEAR POS ADJ 1A 8SON | 94% | View |
| TPS73701DRVT | Texas Instruments | IC REG LINEAR POS ADJ 1A 6WSON | 94% | View |
| TPS73701DRBR | Texas Instruments | IC REG LINEAR POS ADJ 1A 8SON | 94% | View |
| TPS73701DCQ | Texas Instruments | IC REG LINEAR POS ADJ 1A SOT223 | 94% | View |
Submit your RFQ for TPS7A3701DRVT and get a quote within 24 hours.
