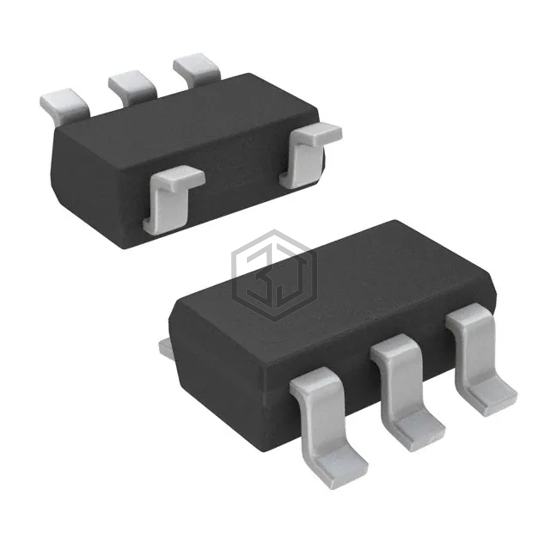

IC REG LIN NEG ADJ 200MA SOT23-5
TPS72301DDCR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN NEG ADJ 200MA SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-23-5 Thin, TSOT-23-5, current - supply (max) 500 µA.
In Stock: 20,731
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -10V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Voltage - Output (Max) | -10V |
| Voltage Dropout (Max) | 0.5V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 200 µA |
| Current - Supply (Max) | 500 µA |
| PSRR | 65dB ~ 48dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | SOT-23-THIN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS72301DRVT | Texas Instruments | IC REG LIN NEG ADJ 200MA 6WSON | 100% | View |
| TPS72301DBVT | Texas Instruments | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| TPS72301DRVR | Texas Instruments | IC REG LIN NEG ADJ 200MA 6WSON | 100% | View |
| TPS72301QDBVRQ1 | Texas Instruments | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| TPS72301DBVR | Texas Instruments | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| TPS72301DDCT | Texas Instruments | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
Submit your RFQ for TPS72301DDCR and get a quote within 24 hours.
