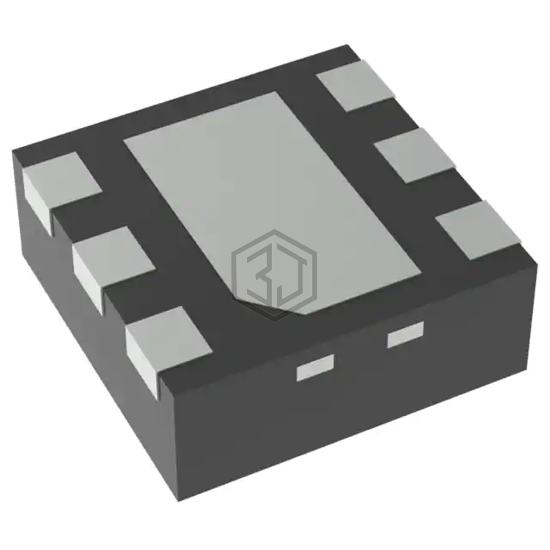

IC REG LINEAR 3.6V/3.15V 6WSON
TPS71936-315DRVT is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 3.6V/3.15V 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-WDFN Exposed Pad, current - supply (max) 250 µA.
In Stock: 23,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.6V, 3.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 200mA, 0.4V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 160 µA |
| Current - Supply (Max) | 250 µA |
| PSRR | 63dB ~ 44dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
TPS71936-315DRVT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS71818-27YZCR | Texas Instruments | IC REG LINEAR 1.8V/2.7V 6DSBGA | 78% | View |
| MIC5259-4.75YML-TR | Microchip Technology | IC REG LINEAR 4.75V 300MA 6MLF | 77% | View |
| LD3985M29R | STMicroelectronics | IC REG LINEAR 2.9V 150MA SOT23-5 | 74% | View |
| LD3985M28R | STMicroelectronics | IC REG LINEAR 2.8V 150MA SOT23-5 | 73% | View |
| LP3985ITL-2.8/NOPB | Texas Instruments | IC REG LINEAR 2.8V 150MA 5DSBGA | 73% | View |
| LP3985ITL-5.0/NOPB | Texas Instruments | IC REG LINEAR 5V 150MA 5DSBGA | 71% | View |
