IC POWER MANAGEMENT

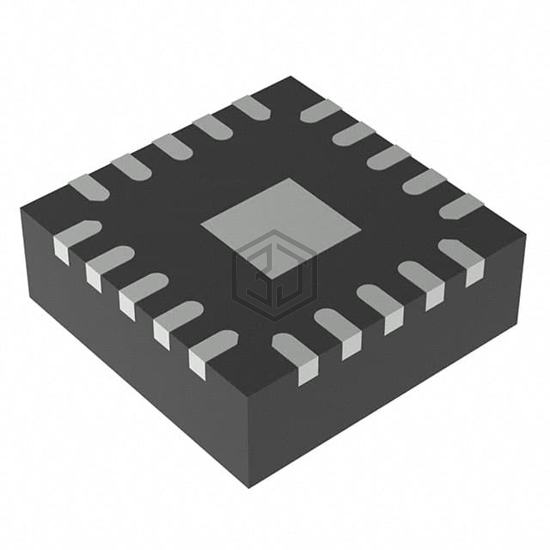

TPS56C230RJER is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-VFQFN Exposed Pad, current - output 12A.
In Stock: 5,590
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 12A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN-HR (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NB671LGQ-Z | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 6A 16QFN | 84% | View |
| ISL85005FRZ-TK | Renesas Electronics America Inc | 5A SYNCH BUCK REG WITH SYNC PIN | 69% | View |
| LTC3633EFE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJ 3A DL 28TSSOP | 61% | View |
| MPQ2315GJ-P | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 3A HI EFF | 60% | View |
| MAX15021ATI/V+ | Analog Devices Inc./Maxim Integrated | DUAL, 4A/2A, 4MHZ, STEP-DOWN DC- | 57% | View |
| LM20125MH/NOPB | Texas Instruments | IC REG BUCK ADJ 5A 16HTSSOP | 56% | View |
Submit your RFQ for TPS56C230RJER and get a quote within 24 hours.
