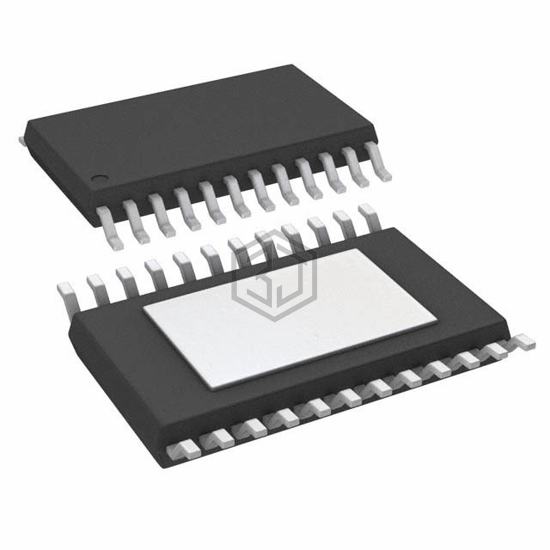

IC REG BCK ADJ/PROG 12A 24HTSSOP
TPS56C20PWP is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BCK ADJ/PROG 12A 24HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output 12A.
In Stock: 8,871
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Programmable) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 1.87V |
| Current - Output | 12A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS56C20PWPR | Texas Instruments | IC REG BCK ADJ/PROG 12A 24HTSSOP | 100% | View |
| TPS56920PWPR | Texas Instruments | IC REG BUCK ADJ/PROG 9A 20HTSSOP | 97% | View |
| TPS56920PWP | Texas Instruments | IC REG BUCK ADJ/PROG 9A 20HTSSOP | 97% | View |
| TPS56720PWPR | Texas Instruments | IC REG BUCK ADJ/PROG 7A 20HTSSOP | 94% | View |
| TPS56720PWP | Texas Instruments | IC REG BUCK ADJ/PROG 7A 20HTSSOP | 94% | View |
| TPS56520PWP | Texas Instruments | IC REG BUCK ADJ/PROG 5A 20HTSSOP | 91% | View |
Submit your RFQ for TPS56C20PWP and get a quote within 24 hours.
