DUAL-CHANNEL D-CAP+, PMBU

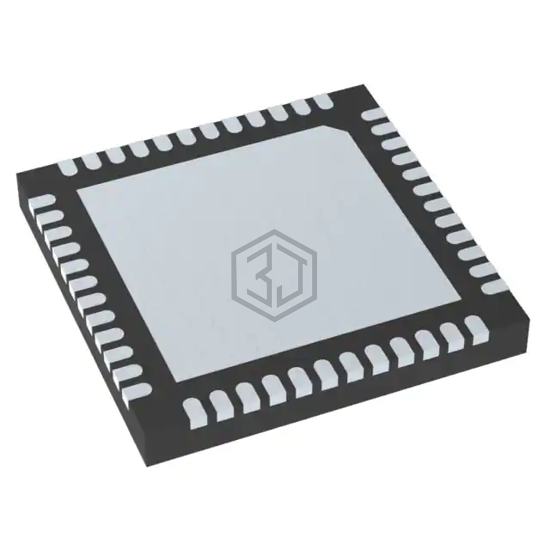

TPS536C7B1RSLT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. DUAL-CHANNEL D-CAP+, PMBU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 18V, package / case 48-VFQFN Exposed Pad.
In Stock: 8,235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 12 |
| Output Phases | 12 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 18V |
| Frequency - Switching | 300kHz ~ 2MHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | PMBus |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Ramp |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (6x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS5120QDBTRQ1 | Texas Instruments | IC REG CTRLR BUCK 30TSSOP | 64% | View |
| MCP19035T-AAABE/MF | Microchip Technology | IC REG CTRLR BUCK 10DFN | 64% | View |
| NCV3020ADR2G | onsemi | IC REG CTRLR BUCK 8SOIC | 63% | View |
| LT3845EFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16TSSOP | 62% | View |
| LT3845IFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16TSSOP | 62% | View |
| TPS40303DRCR | Texas Instruments | IC REG CTRLR BUCK 10SON | 59% | View |
Submit your RFQ for TPS536C7B1RSLT and get a quote within 24 hours.
