DUAL-CHANNEL 6+2/5+3 D-CAP+TM MU

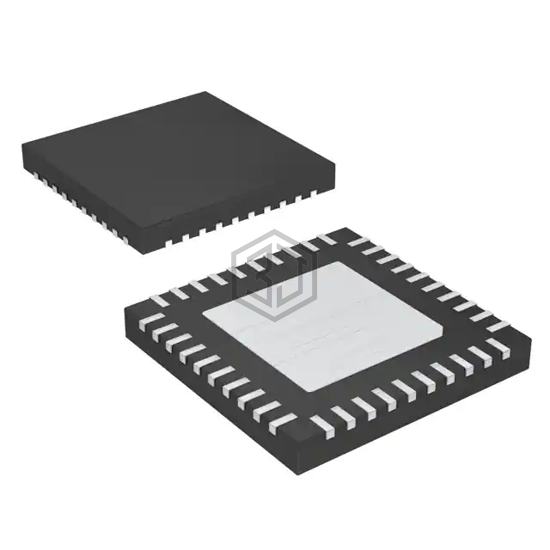

TPS53681RSBT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. DUAL-CHANNEL 6+2/5+3 D-CAP+TM MU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 17V, package / case 40-WFQFN Exposed Pad.
In Stock: 9,666
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 17V |
| Frequency - Switching | 300kHz ~ 1MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | PMBus |
| Control Features | Current Limit, Enable |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS53681RSBR | Texas Instruments | TPS53681RSBR | 100% | View |
| MAX20751EKX+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK PMBUS 36QFN | 73% | View |
| MAX20751EKX+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK PMBUS 36QFN | 73% | View |
| LTC3870EUF-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 63% | View |
| LTC3870IUF-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 63% | View |
| LTC3882EUJ#PBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 40QFN | 59% | View |
Submit your RFQ for TPS53681RSBT and get a quote within 24 hours.
