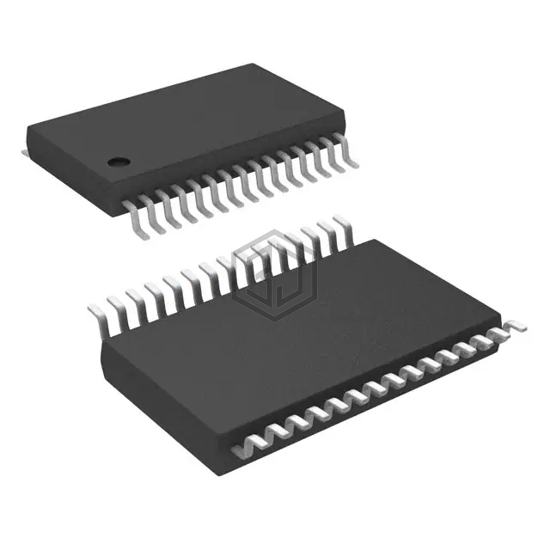

IC REG CTRLR BUCK 30TSSOP
TPS5120DBTG4 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 30TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 28V, package / case 30-TFSOP (0.173", 4.40mm Width).
In Stock: 6,538
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 83% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 30-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 30-TSSOP |
TPS5120DBTG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6440IAZ-T7 | Renesas Electronics America Inc | IC REG CTRLR BUCK 24QSOP | 98% | View |
| SC1104AISTRT | Semtech Corporation | IC REG CTRLR BUCK 8SOIC | 84% | View |
| MIC2182-3.3BM-TR | Microchip Technology | IC REG CTRLR BUCK 16SOIC | 84% | View |
| ISL6520AIBZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 8SOIC | 84% | View |
| LTC3832-1ES8 | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST 8SOIC | 80% | View |
| XC9220D093ER-G | Torex Semiconductor Ltd | 16V INPUT STEP-DOWN DCDC CONTROL | 79% | View |
Submit your RFQ for TPS5120DBTG4 and get a quote within 24 hours.
