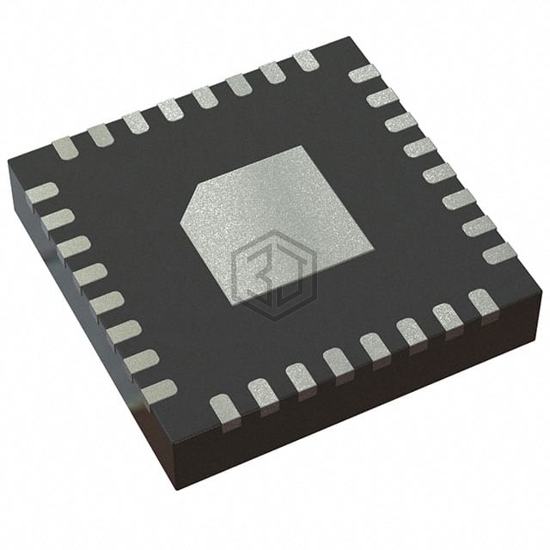

IC REG CTRLR BUCK 32QFN
TPS40130RHBR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 40V, package / case 32-VFQFN Exposed Pad.
In Stock: 15,098
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 40V |
| Frequency - Switching | 100kHz ~ 1.2MHz |
| Duty Cycle (Max) | 87.5% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
TPS40130RHBR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM1770SMF | National Semiconductor | SWITCHING CONTROLLER, VOLTAGE-MO | 84% | View |
| TPS40170RGYT | Texas Instruments | IC REG CTRLR BUCK 20VQFN | 80% | View |
| TPS40195RGYR | Texas Instruments | IC REG CTRLR BUCK 16VQFN | 80% | View |
| MAX15046BAEE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16QSOP | 80% | View |
| TPS40056PWPR | Texas Instruments | IC REG CTRLR BUCK 16HTSSOP | 71% | View |
| TPS40056PWP | Texas Instruments | IC REG CTRLR BUCK 16HTSSOP | 71% | View |
Submit your RFQ for TPS40130RHBR and get a quote within 24 hours.
