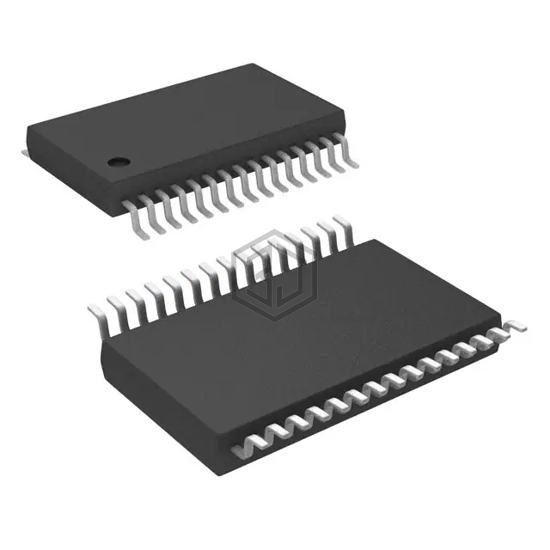

IC REG CTRLR BUCK 30TSSOP
TPS40130DBTR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 30TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 40V, package / case 30-TFSOP (0.173", 4.40mm Width).
In Stock: 8,800
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 40V |
| Frequency - Switching | 100kHz ~ 1.2MHz |
| Duty Cycle (Max) | 87.5% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 30-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 30-TSSOP |
TPS40130DBTR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX1858AEEG+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 24QSOP | 95% | View |
| LTC3886EUKG#PBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 52QFN | 95% | View |
| TPS40131RHBR | Texas Instruments | IC REG CTRLR BUCK 32QFN | 95% | View |
| MAX5066EUI+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 28TSSOP | 95% | View |
| MCP19119T-E/MQ | Microchip Technology | IC REG CTRLR BCK PMBUS 28WDFN | 80% | View |
| TPS40100RGET | Texas Instruments | IC REG CTRLR BUCK 24QFN | 80% | View |
Submit your RFQ for TPS40130DBTR and get a quote within 24 hours.
