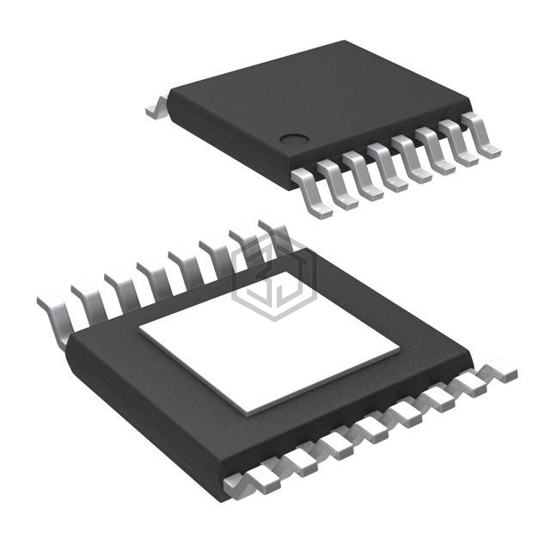

IC REG CTRLR BUCK 16HTSSOP
TPS40056PWPRG4 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 16HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 40V, package / case 16-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 3,432
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 40V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP |
TPS40056PWPRG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3703IGN#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16SSOP | 99% | View |
| ISL6420BIRZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 20QFN | 93% | View |
| MIC2176-1YMM-TR | Microchip Technology | IC REG CTRLR BUCK 10MSOP | 91% | View |
| LTC7803HMSE#TRPBF | Analog Devices Inc. | LOW IQ SYNCHRONOUS BUCK CONTROLL | 91% | View |
| TPS40100RGER | Texas Instruments | IC REG CTRLR BUCK 24QFN | 91% | View |
| LTC7803JMSE#WTRPBF | Analog Devices Inc. | LOW IQ SYNCHRONOUS BUCK CONTROLL | 91% | View |
