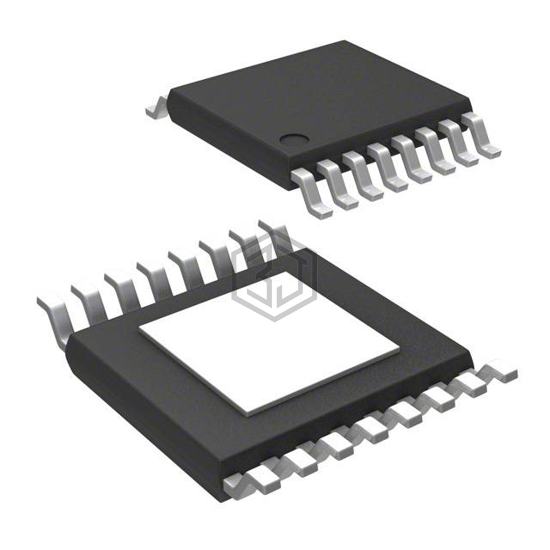

IC REG CTRLR BUCK 16HTSSOP
TPS40020PWPRG4 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 16HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.25V ~ 5.5V, package / case 16-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 9,408
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 5.5V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP |
TPS40020PWPRG4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS40021MPWPEP | Texas Instruments | IC REG CTRLR BUCK 16HTSSOP | 100% | View |
| ISL6406IVZ-T | Intersil | SWITCHING CONTROLLER, VOLTAGE-MO | 97% | View |
| MCP19111-E/MQ | Microchip Technology | IC REG CTRLR BUCK PMBUS 28QFN | 92% | View |
| TPS40195PW | Texas Instruments | IC REG CTRLR BUCK 16TSSOP | 92% | View |
| MAX1876AEEG+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 24QSOP | 77% | View |
| ISL81802FRTZ-T7A | Renesas Electronics America Inc | 80V DUAL SYNC BUCK CONTROLLER 32 | 77% | View |
Submit your RFQ for TPS40020PWPRG4 and get a quote within 24 hours.
