IC REG CTRLR BUCK 10MSOP

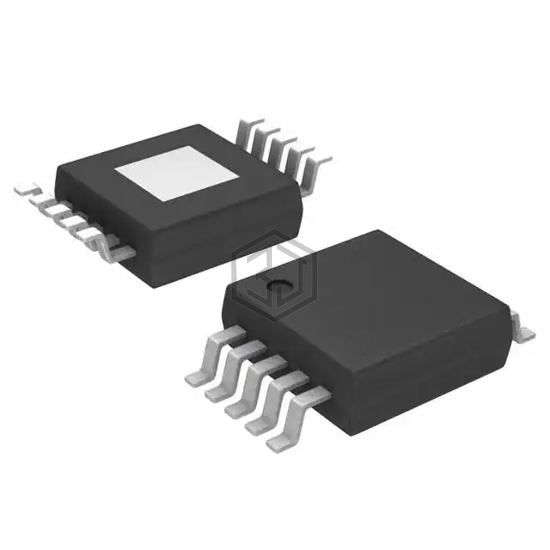

TPS40004DGQR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.25V ~ 5.5V, package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width).
In Stock: 45,000
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 5.5V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 94% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
TPS40004DGQR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R1224N222E-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| R1224N152E-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| S-8521F33MC-BPST2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 99% | View |
| S-8521F50MC-BQJT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 99% | View |
| S-8533A45AFT-TB-U | ABLIC Inc. | IC REG CTRLR BUCK 8TSSOP | 98% | View |
| ADP1871ACPZ-0.3-R7 | Analog Devices Inc. | IC REG CTRLR BUCK 10LFCSP | 97% | View |
Submit your RFQ for TPS40004DGQR and get a quote within 24 hours.
