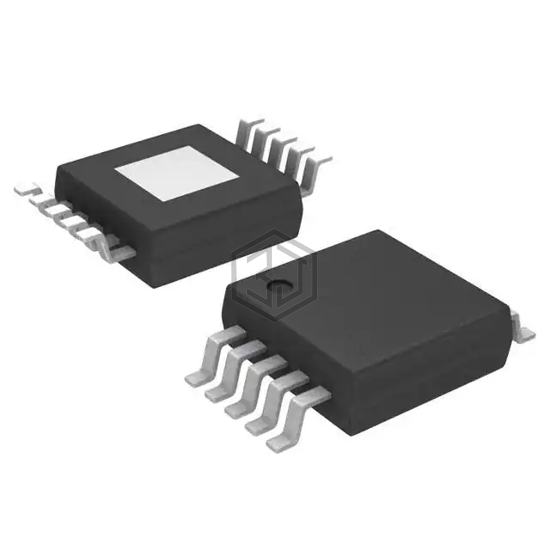

IC REG CTRLR BUCK 10MSOP
TPS40004DGQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.25V ~ 5.5V, package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width).
In Stock: 22,892
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 5.5V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 94% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
TPS40004DGQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3740EDHC#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16-DFN | 100% | View |
| XC9221A093MR-G | Torex Semiconductor Ltd | 16V INPUT STEP-DOWN DCDC CONTROL | 98% | View |
| S-8533A25AFT-TB-U | ABLIC Inc. | IC REG CTRLR BUCK 8TSSOP | 98% | View |
| ADP1870ARMZ-0.3-R7 | Analog Devices Inc. | IC REG CTRLR BUCK 10MSOP | 97% | View |
| LT3845MPFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16TSSOP | 94% | View |
| MIC2182-5.0YSM | Microchip Technology | IC REG CTRLR BUCK 16SSOP | 92% | View |
Submit your RFQ for TPS40004DGQ and get a quote within 24 hours.
