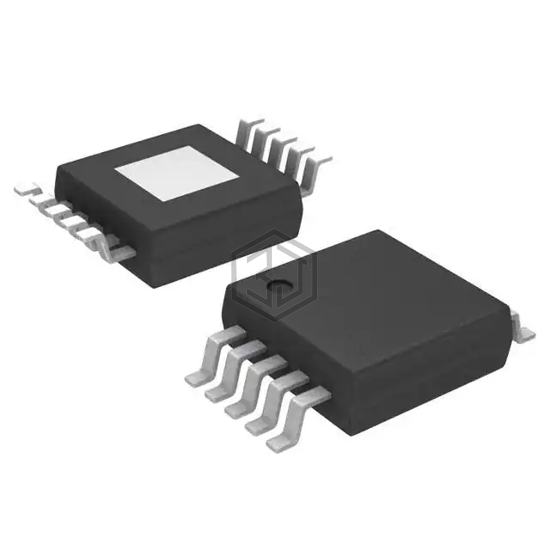

IC REG CTRLR BUCK 10MSOP
TPS40001DGQR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.25V ~ 5.5V, package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width).
In Stock: 5,935
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 5.5V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 94% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
TPS40001DGQR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S-8521E35MC-BLUT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 99% | View |
| S-8520F25MC-BNKT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 99% | View |
| LTC1735IGN-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 16SSOP | 95% | View |
| LT3845AMPFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 16TSSOP | 94% | View |
| A6727TR | STMicroelectronics | IC REG CTRLR BUCK 8SOIC | 93% | View |
| NCP5212AMNTXG | onsemi | IC REG CTRLR BUCK 16QFN | 92% | View |
Submit your RFQ for TPS40001DGQR and get a quote within 24 hours.
