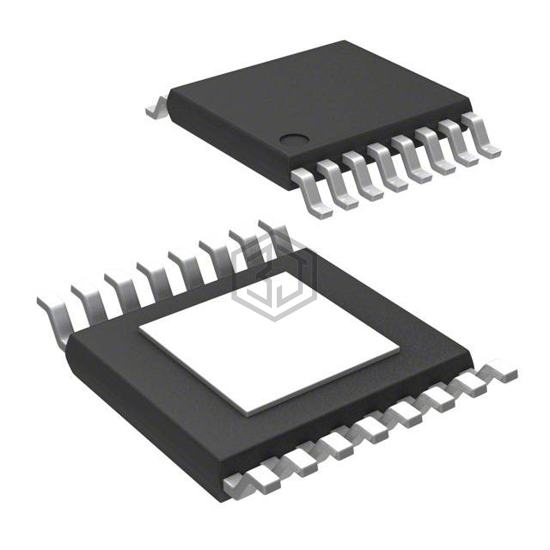

IC GATE DRVR HALF-BRIDG 16HTSSOP
TPS2838PWPRG4 is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDG 16HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 10V ~ 15V, package / case 16-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 6,334
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 10V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 29 V |
| Rise / Fall Time (Typ) | 65ns, 65ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP |
TPS2838PWPRG4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN73912AMX | onsemi | 1200V HIGH-CURRENT, HALF-BRIDGE, | 70% | View |
| HIP0084AB | Harris Corporation | QUAD POWER DRIVERS W/SERIAL DIAG | 69% | View |
| ZXGD3109N8TC | Diodes Incorporated | IC GATE DRVR SYNC MOSFET CTL 8SO | 67% | View |
| ZXGD3110N8TC | Diodes Incorporated | IC GATE DRVR SYNC MOSFET CTL 8SO | 67% | View |
| FAN3214TMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 65% | View |
| FAN3213TMX-F085 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 65% | View |
Submit your RFQ for TPS2838PWPRG4 and get a quote within 24 hours.
