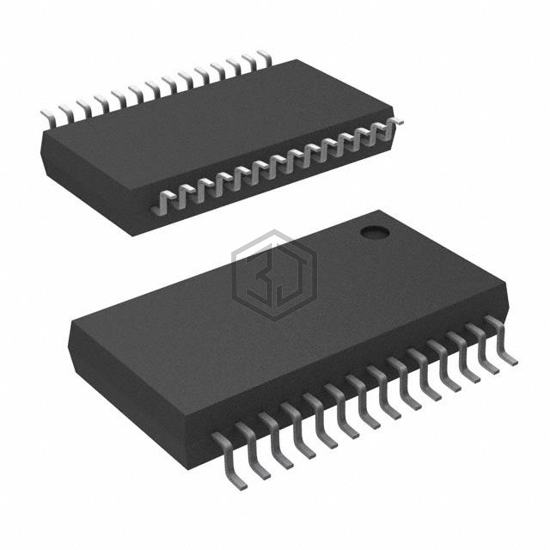

IC GATE DRVR LOW-SIDE 28SSOP
TPIC46L03DB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 28SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 28-SSOP (0.209", 5.30mm Width).
In Stock: 2,327
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1.2mA, 1.2mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 3.5µs, 3µs |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
TPIC46L03DB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPIC46L01DBR | Texas Instruments | IC GATE DRVR LOW-SIDE 28SSOP | 100% | View |
| TPIC46L02DBRG4 | Texas Instruments | IC GATE DRVR LOW-SIDE 28SSOP | 100% | View |
| TPIC46L01DB | Texas Instruments | IC GATE DRVR LOW-SIDE 28SSOP | 100% | View |
| TPIC46L03DBRG4 | Texas Instruments | IC GATE DRVR LOW-SIDE 28SSOP | 100% | View |
| TPIC44L02DB | Texas Instruments | IC GATE DRVR LOW-SIDE 24SSOP | 94% | View |
| TPIC44L02DBR | Texas Instruments | IC GATE DRVR LOW-SIDE 24SSOP | 94% | View |
Submit your RFQ for TPIC46L03DB and get a quote within 24 hours.
