FILTER RC(PI) 100 OHM/8.5PF SMD

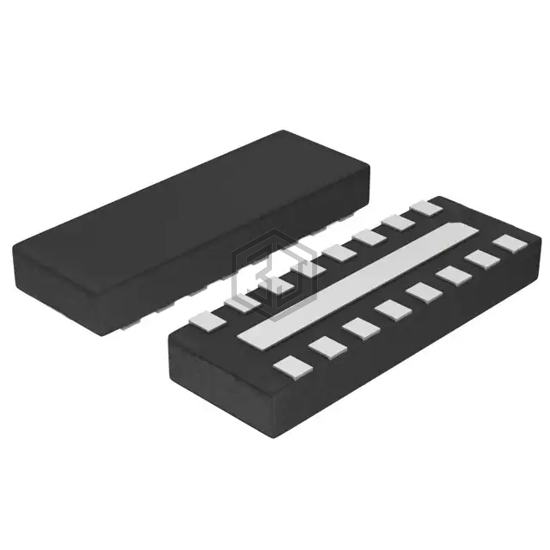

TPD8F003DQDR is a EMI/RFI Filters (LC, RC Networks) manufactured by Texas Instruments. FILTER RC(PI) 100 OHM/8.5PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-WFDFN Exposed Pad, size / dimension 0.130" L x 0.053" W (3.30mm x 1.35mm).
In Stock: 5,104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | 200MHz (Cutoff) |
| Attenuation Value | 25dB @ 1GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 8.5pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Height | 0.031" (0.79mm) |
Submit your RFQ for TPD8F003DQDR and get a quote within 24 hours.
