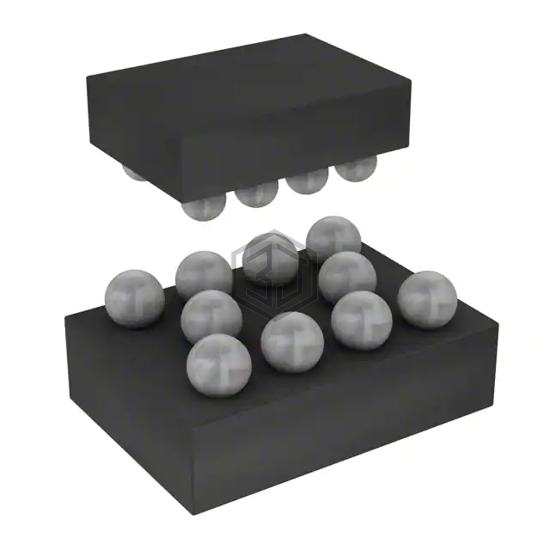

FILTER RC(PI) 100 OHM/15PF SMD
TPD4F202YFUR is a EMI/RFI Filters (LC, RC Networks) manufactured by Texas Instruments. FILTER RC(PI) 100 OHM/15PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-XFBGA, DSBGA, size / dimension 0.061" L x 0.041" W (1.56mm x 1.05mm).
In Stock: 6,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 4 |
| Center / Cutoff Frequency | 108MHz (Cutoff) |
| Attenuation Value | 40dB @ 1GHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 15pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFBGA, DSBGA |
| Size / Dimension | 0.061" L x 0.041" W (1.56mm x 1.05mm) |
| Height | 0.014" (0.35mm) |
Submit your RFQ for TPD4F202YFUR and get a quote within 24 hours.
